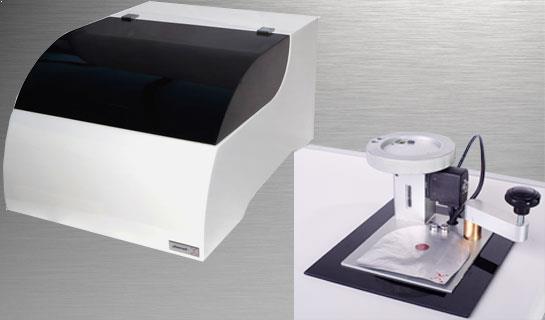

TotalPerm 3 in 1 Instrument

Measures WVTR + OTR + CO2TR in a single Instrument

• Test Range H2O

  0.002-100 g.m-2.24h-1.bar-1 (unmasked)

  0.04-2000 g.m-2.24h-1.bar-1 (masked)

• Test Range O2

  0.01-7500 cm3.m-2.24h-1.bar-1 (unmasked)

  0.2-150000 cm3.m-2.24h-1.bar-1 (masked)

• Test Range CO2

  0.25-18000 cm3.m-2.24h-1.bar-1 (unmasked)

  20-360000 cm3.m-2.24h-1.bar-1 (masked)

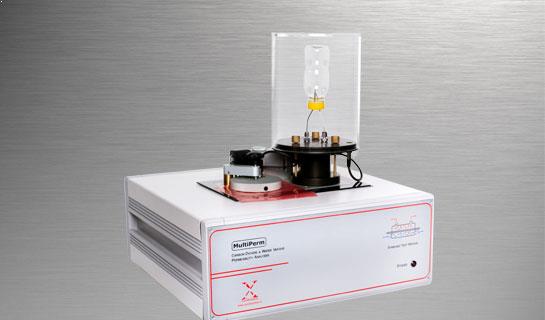

MultiPerm 2 in 1 Instrument

Measures WVTR + OTR in a single Instrument

• Test Range H2O

  0.002-100 g.m-2.24h-1.bar-1 (unmasked)

  0.04-2000 g.m-2.24h-1.bar-1 (masked)

• Test Range O2

  0.01-7500 cm3.m-2.24h-1.bar-1 (unmasked)

  0.2-150000 cm3.m-2.24h-1.bar-1 (masked)

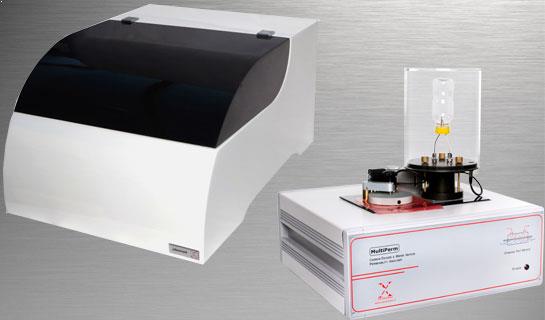

Conventional Models

• PermeH2O :

  Water Vapour Transmission Rate - WVTR


• PermeO2 :

  Oxygen Transmission Rate - OTR



• PermeCO2 :

  Carbon Dioxide Transmission Rate – CO2TR


• PermeO2RC :

  Economical : Oxygen Transmission Rate - OTR



Pack Perm

for measuring the oxygen transmission rate (OTR) through pouches, bags, little containers, PET bottles, natural or synthetic corks, screw and bottle tops, bag-in-box and other products for packaging application.

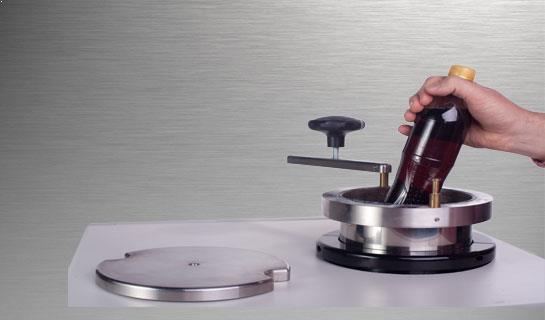

Carbo Pack BT

New ExtraSolution’s product for testing shelf-life of bottles or container filled with carbonated beverages. Now it is possible to perform non destructive test on a single bottle in extremely short time (about 1 hour) to know the amount of loss of carbon dioxide in a day.
